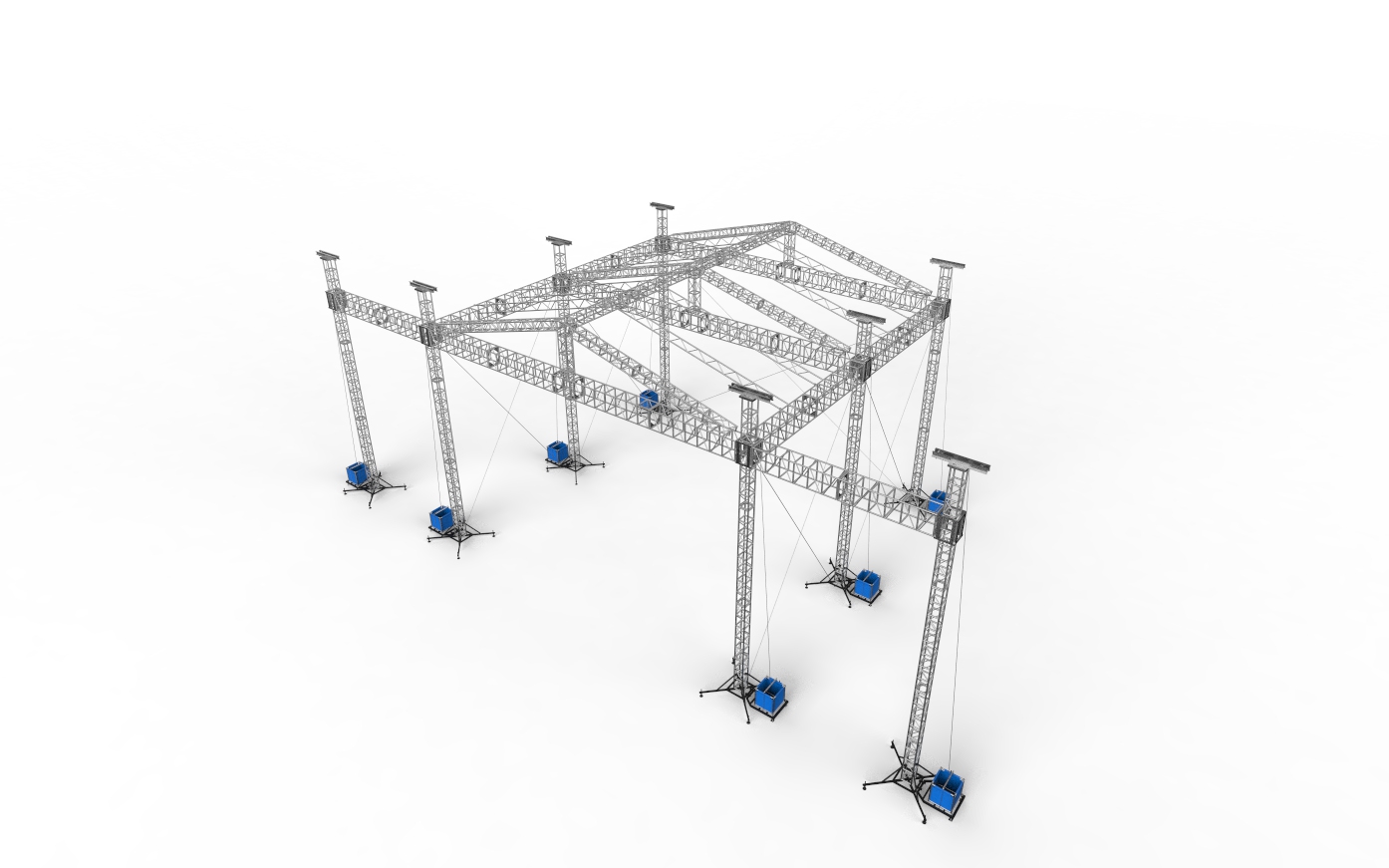

16x12x10m pyramid roof truss system-8 legs

This 16x12x10M Roof can be lifted motorized or by manual chain hoists. The Roof is designed and calculated to be set up on single steel bases. The top canopy is tightened with tubes and ratchet straps and the wall canopies can be either in full PVC or the wind through mash.

The pyramid  Roofs are designed to be set up on single eel bases which can be connected with a compression beam which reduces the balla requirements or can be set up with integrated bases (balla safes) in any kind of eel scaffolding age. The top canopy is tightened with tubes and ratchet raps and the wall canopies can be either in full PVC or the wind through mash.


This roof meets all the required international andards and has been pre-calculated and comes with a full ructural report and manual according the mo recent regulations. Naturally PA Wings and Side Houses are available.


The pyramid  Roof consi of a  Ground Support on six 350x350 Towers and a Roof ructure 0f  Truss.


The pyramid  Roof is a tower based ructure with a pyramid  roof. These pyramid  roofs have a andard impressive load bearing  Main Rig and the gable and have a fixed angle which enables you to re-build the roof in various dimensions. The andard pyramid   Roofs are available in 20x14m, 18x14m, 16x12m and 14x12m all on six 350x350 Towers. The 20x14m and 18x14m roofs have an additional center back tower to enhance the load bearing capacity and maintain the required clearance.

TECHNICAL SPECIFICATIONS

size: 16x12x10m Tower

truss size:  truss 400x600mm

Main tube: 50x3mm

Max. Load : 8000Kg.

Width: 16 m.

Clearance: 12 m.

Depth:10 m.
