SEMI-CIRCLE STAGE ROOF 34x17x17m

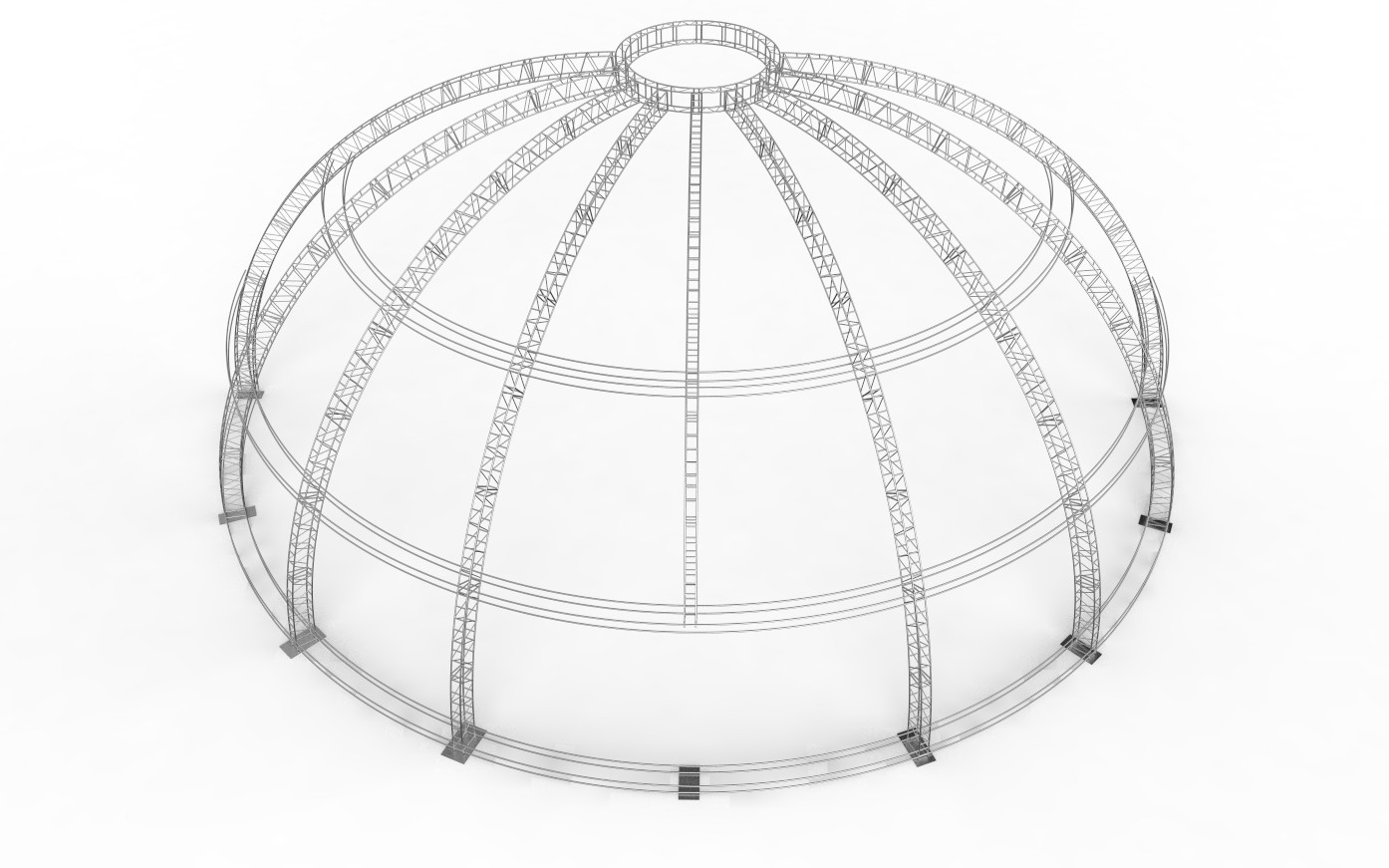

The semi-circle structure consist of standard X-HT48 mast truss sections on special small bases. Between the arches standard hook on bars are required for extra stability and to support the canopy.

The arched roof structure consist of standard X-HT48 mast truss sections on special small bases. Integrated jacks and a few special corners assures the fit for the triangular X-FT32 arches. Between the arches standard hook on bars are required for extra stability and to support the canopy.


AVAILABLE IN DIFFERENT SIZES

The  Arc Roof comes in various dimensions 34x17x17m,.12x8m,10x8m, 8x6m, 8x4m and 6x4m and all roofs are available Version. The top canopy is tightened with tubes and ratchet straps and the wall canopies can be either in full PVC or the wind through mash.


The  Arc Roof is on many occasions the perfect solution by its low self weight, minimum of volume, easy and fast manual set up by 2 persons and a nice appearance.

TECHNICAL SPECIFICATIONS

Size: 34x17x17mm

wing load: 6000kg

Tower truss size: X-HT48

Maint ube: 50x3mm

Roof Structure: X-HT48

Width: 34m.

Depth: 17m

Height: 17m
