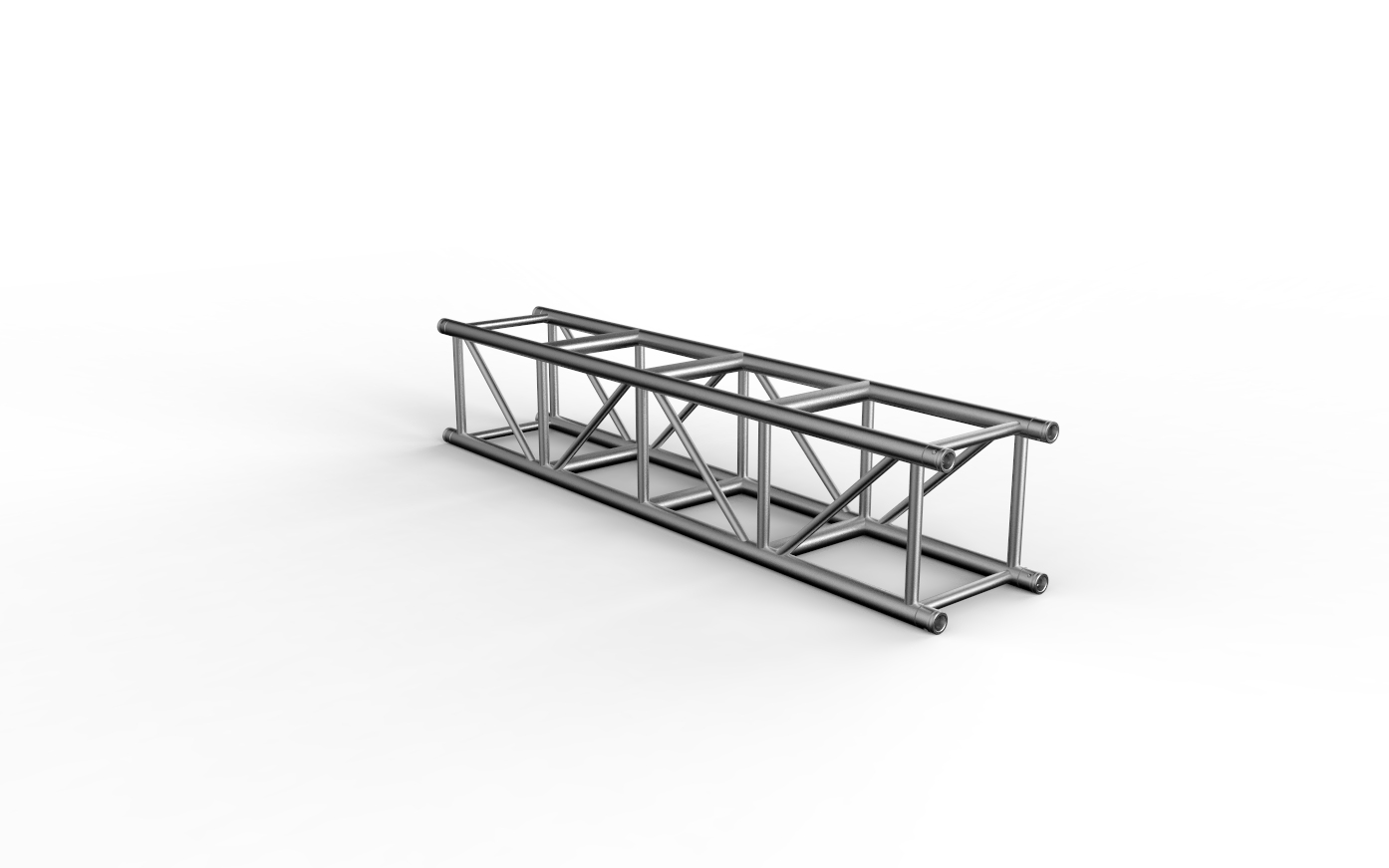

X-HT44 SQUARE TRUSS

The X-HT44 has excellent load carrying capacity and can be used on a free span of 14m (46 feet) or as a tower member. The main wall thickness of the X-HT44 used is 3mm to ensure durability and extra strength. Designed for high frequency use or installations requiring higher loads. This truss is very versatile, used for stage roof truss, stge flat roof truss, hanging stage lights, hanging sounds, supporting LED displays, etc.

TECHNICAL SPECIFICATIONS

X-HT44                                                      X-HT44-1                               X-HT44-2                                   X-HT44-3

Height  400 mm

Width   400 mm

Main Tube: 50 x 3 mm                                    Main Tube: 50x3mm                 Main Tube: 50x3mm                                Main Tube: 50x3mm

Braces tube: 25 x 2 mm                                   Deputy tube: 30x2mm              Deputy tube: 50x2mm/30X2mm              Deputy tube: 50x2mm

Weight: ~7 kg/m                                              Brace tube: 25x2mm               Brace tube: 25x2mm                                 Brace tube: 25x2mm

Material: alu-6061 T6 or alu-6082-T6

PRODUCTCODES & DESCRIPTION

Productcode           Length Comments

X-HT44-025               25 cm.

X-HT44-050               50 cm.

X-HT44-075               75 cm.

X-HT44-100               100 cm.

X-HT44-150              150 cm.

X-HT44-200              200 cm.

X-HT44-250             250 cm.

X-HT44-300            300 cm.

X-HT44-350            350 cm.

X-HT44-400            400 cm.

X-HT44

X-HT44-1

X-HT44-2

X-HT44-3
