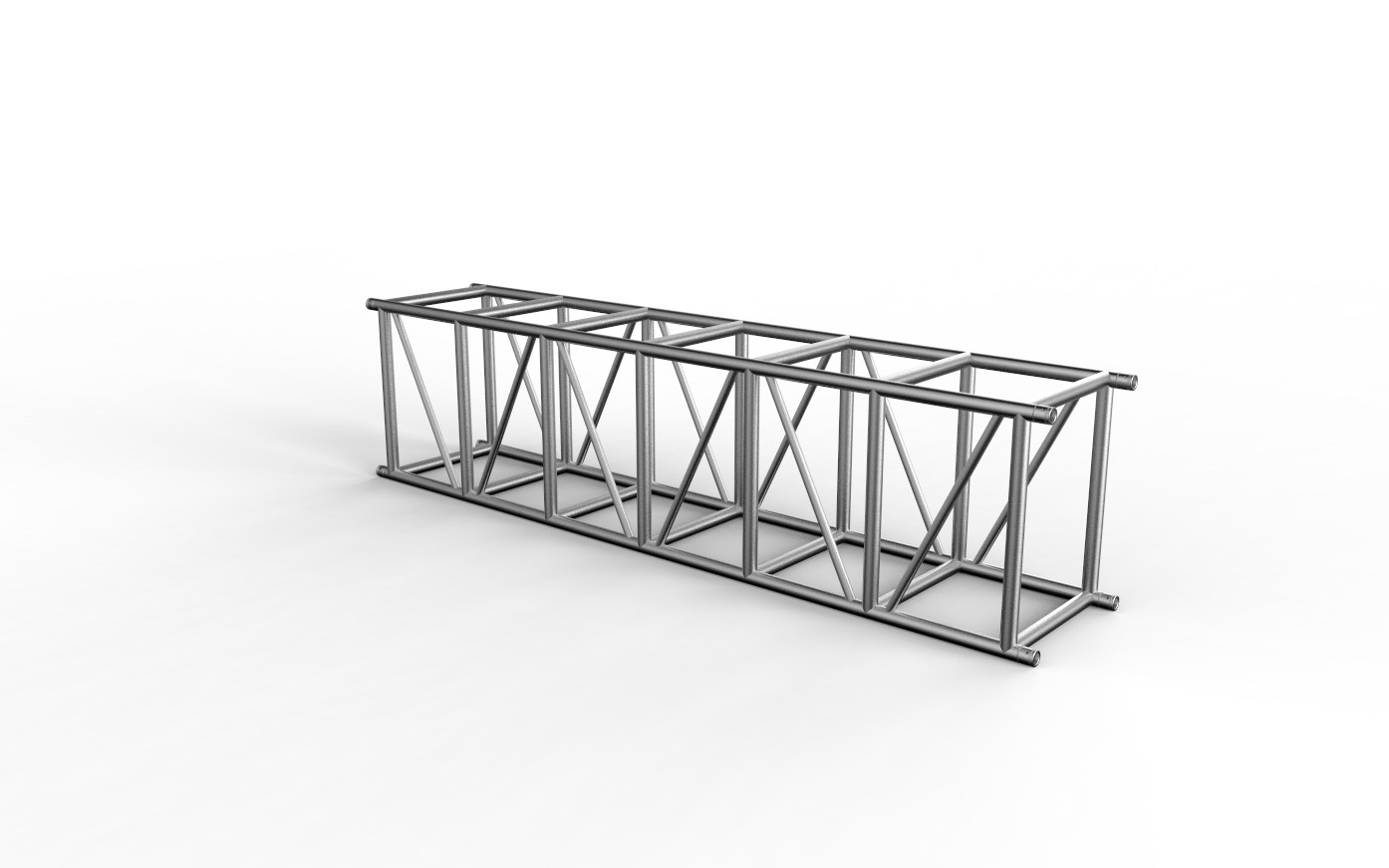

X-HT67 SQUARE TRUSS

The X-HT67 has excellent load carrying capacity and can be used on a free span of 14m (46 feet) or as a tower member. The main wall thickness of the X-HT67 used is 4mm to ensure durability and extra strength. Designed for high frequency use or installations requiring higher loads. This truss is very versatile, used for stage roof truss, stge flat roof truss, hanging stage lights, hanging sounds, supporting LED displays, etc.

TECHNICAL SPECIFICATIONS

X-HT67

Height  600 mm

Width   760 mm

Main Tube: 50 x 4 mm

Deputy tube: 50 x 2mm

Braces tube: 30 x 2 mm

Weight: ~15 kg/m

Material: alu-6061 T6 or alu-6082-T6

PRODUCTCODES & DESCRIPTION

Productcode           Length Comments

X-HT67-025               25 cm.

X-HT67-050               50 cm.

X-HT67-075               75 cm.

X-HT67-100               100 cm.

X-HT67-150              150 cm.

X-HT67-200              200 cm.

X-HT67-250             250 cm.

X-HT67-300            300 cm.

X-HT67-350            350 cm.

X-HT67-400            400 cm.
